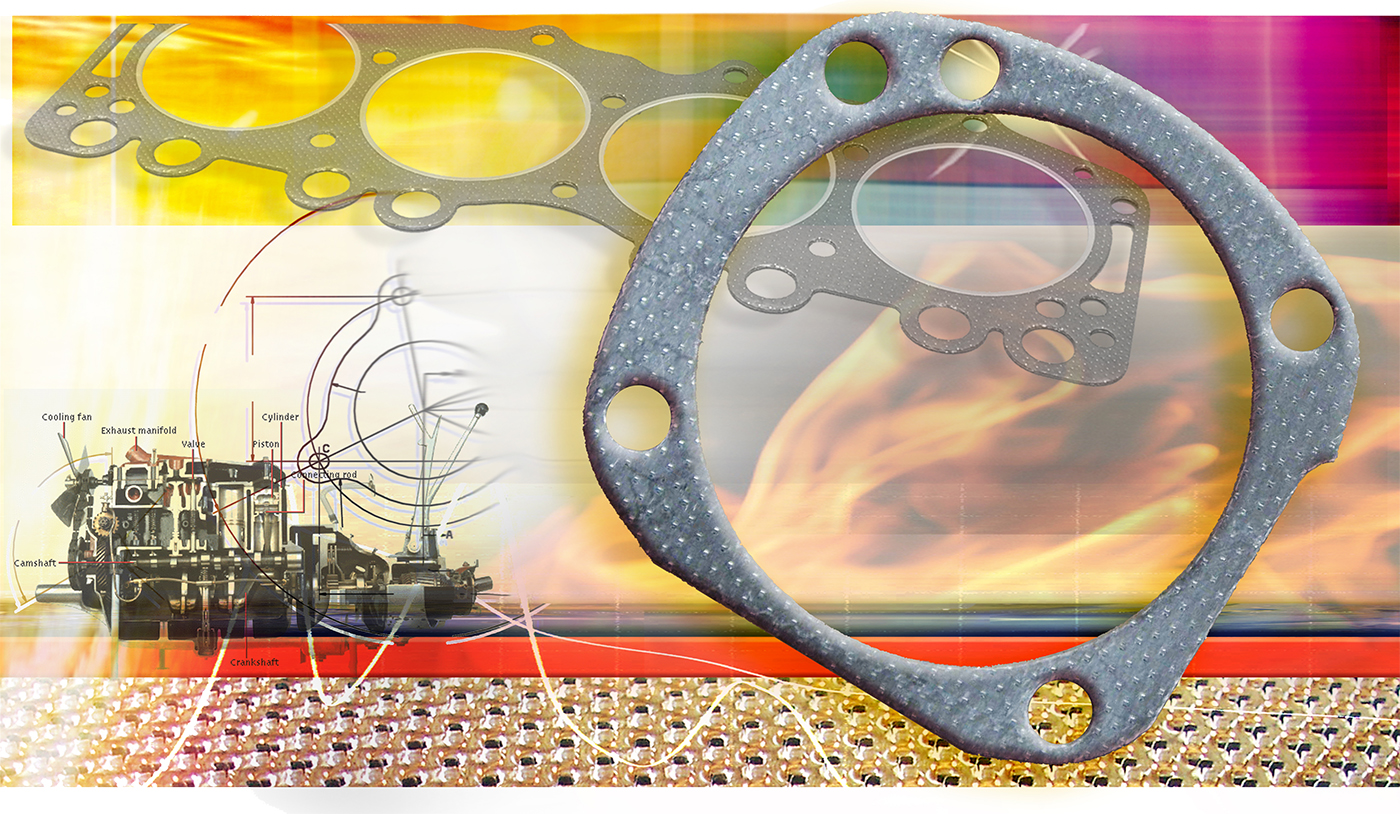

The Metal Tech Corseal series features a rectangular perforation pattern. This pattern has nearly twice the perforations per square inch as the starburst pattern, providing more contact points to grip the facing. It should be used for gaskets where land area is tight to be sure that there is a bond point in the cross section. This core also compresses at lower loads resulting in approximately 10% more compressibility over the same facing on the Hi-Tex core. This is advantageous when designing head gaskets or other critical fluid sealing gaskets. This core technology is commonly used for head gaskets, intake gaskets, engine fluid gaskets, cover gaskets, and general industrial flange gaskets. For more information about Corseal, email sales@mtigasket.com!
Provides an economical solution where graphite gasketing is required.
Provides an economical solution where graphite gasketing is required.
Anti-oxidant graphite applied to rectangular-style, perforated steel core. OEM performance at an economical price.
Recommended for OEM exhaust flange gasket applications, cylinder head gaskets, and other performance-driven uses.
Wide range of performance while providing economical benefit for the user where costs are critical.
High-performance material with excellent thermal properties, sealability, and fluid resistance for use in head gaskets, intake manifold gaskets, and other sealing applications.
Universal material that can be used in a variety of applications including: sealing intake and exhaust, cylinder heads, high pressure/temperature engine ports, and high-performance turbocharger environments in engines from large diesels to lawn and garden uses.
